• Diode Leads & Terminals of Rectifier Phase Plate to be Spot Welded to achieve Electrical Contact.
• Diode Lead Dia. From 0.5mm to 1.0mm Max (Copper with plating)
• Terminal – 0.5 mm to 1.0mm (Copper with Plating)
• No of Weld Joints per Assembly – Max. 8 Nos
• PCD – from 80mm to 160mm

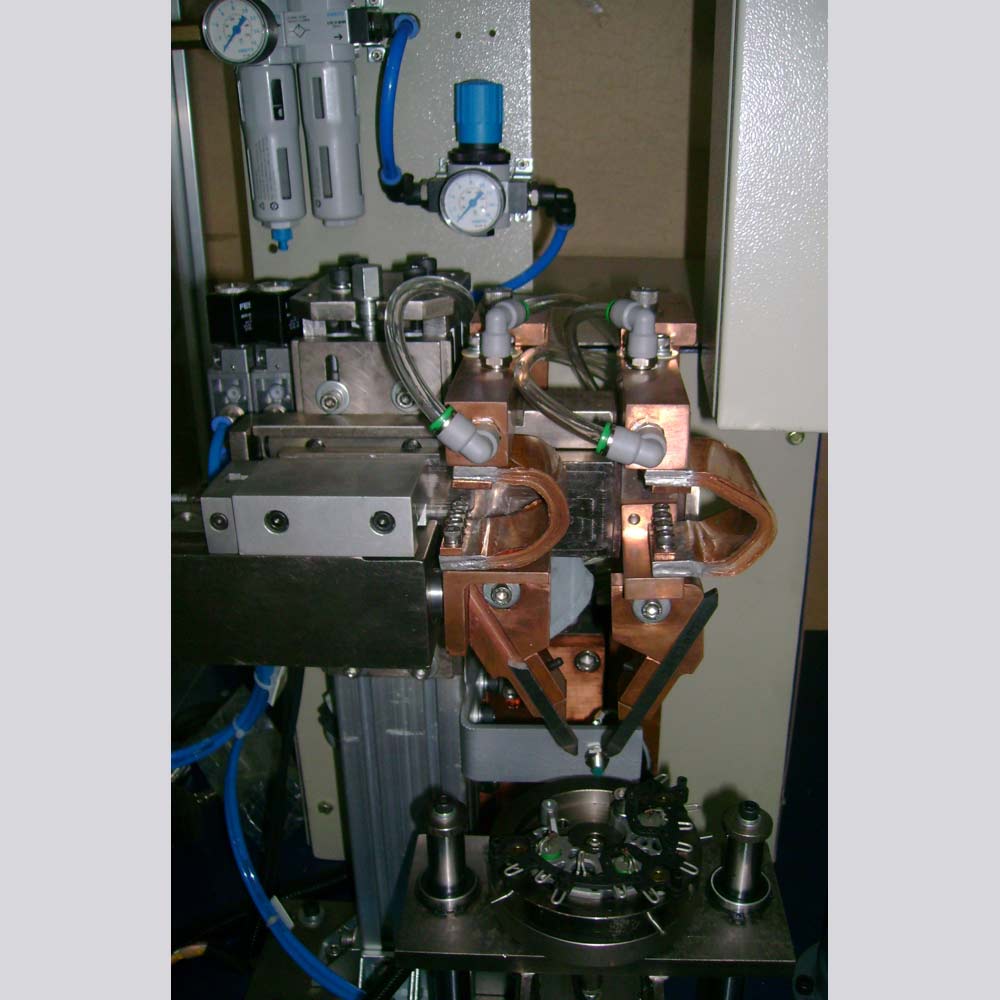

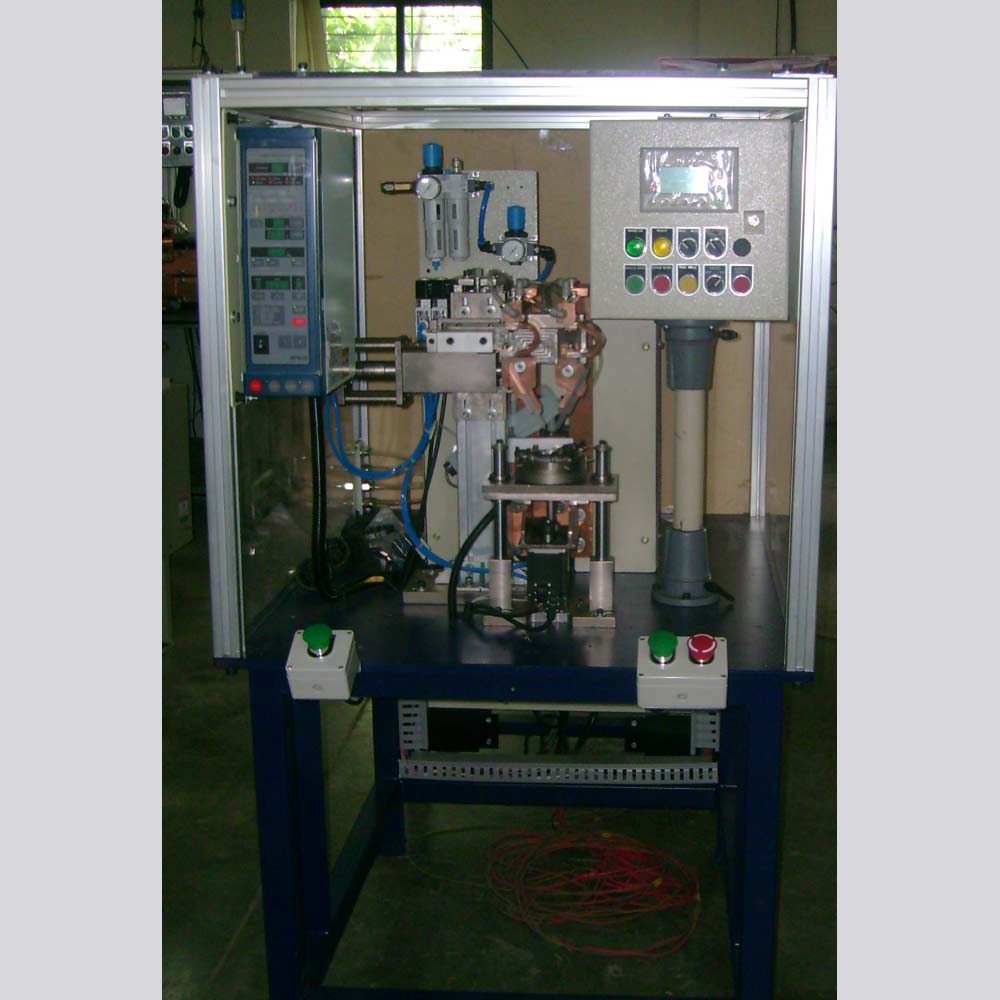

• Machine – KSLT – Pincer Head SPM
• Weld Head –Special Pincer Head Pneumatic Operated
• Controller – AC/MFDC as per customer requirement
• Weld Transformer – AC/MFDC
• Locator with Servo Indexing
• Up Down Movement – Weld Head Pneumatic Operated
• PLC & MMI – For Programm & Sequencing
• Expected Cycle Time for 8 Leads – 36 Seconds with Loading – Unloading (Manual) & Welding Time.

Optional Accessories

• Digital Air Pressure Switch, Water Flow Switch, Load Cell, LVDT, Light Curtain, Acrylic Cover for Machine, Rejection Bin.
